Full Seg Digital TV Receiver
ISDB-T 2053

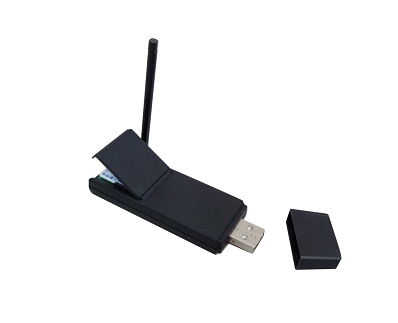

ISDB-T 2053 is a digital terrestrial TV receiver. You can easily watch any digital TV programs on your PC with the revolutionary ISDB-T 2053. ISDB-T 2053 provides you digital entertainment anywhere without annoying power adapter and wires. Bundled with powerful DTV player able to do Real-Time / Scheduling digital video recording, you will miss no important programs ever.
DESCRIPTION
H/W Spec
(01) ISDB-T Broadcasting Standard: 1 & 13 seg Channel Compliant
(02) Support ISDB-T VHF/UHF programs
(03) USB2.0 Interface Compatible
(04) Modulation mode: DQPSK, QPSK, 16QAM, 64QAM
(05) Guard Interval : 1/32, 1/16, 1/8, 1/4
(06) Mode : Mode1, Mode2, Mode3
(07) FEC Modes : 1/2, 2/3, 3/4, 5/6, 7/8
(08) RF Input: F Type connector
(09) Power Consumption: ＜2000mW (5V x 400mA)
(10) Channel Bandwidth: 430KHz 1 Seg & 6MHz For 13Seg
(11) Antenna Input Impedance: 50 Ohm
(12) Sensitivity: -76dBm (64QAM HD)
(13) Maximum Input Level: +4dBm
(14) Connector: Mini USB Type
(15) B-CAS Interface
(16) Japan CA-System (Multi 2)
(17) Support H/W Encrippion

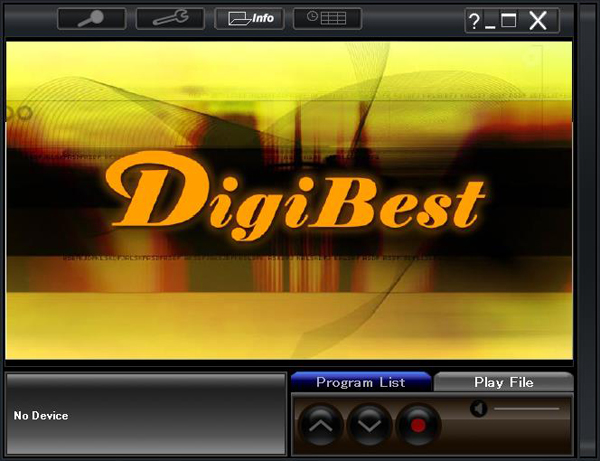

 ISDB-T 2035 Full seg Digital TV Receiver Application
DigiBest Digital TV AP Playing


S/W Spec
(01) Video Format: H.264(MPEG-4 pat 10) main, high profile level 4.1/MPEG MP@HL
(02) Video Frame Rate: 30 fps
(03) Audio Format: MPEG-1 layer I/II, MPEG-2 layer II,MPEG-2 AAC,
    MPEG-4 AAC LC MPEG-4 AAC+SBR, Dolby AC3
(04) Video Bite Rate:32 Mbps, Max
(05) Software Compatible: Windows XP/Vista
(06) Features :
  01. Microsoft Windows BDA architecture
  02. Fully Resizable TV (Up to Full Screen)
  03. EPG & i-EPG Support
  04. Still Image Capture
  05. Play Recording File
  06. Plug & Play installation
  07. Subtitle Support
  08. Program List
  09. Real Time & Schedule Recording
  10. MTS Support
  11. BML Support(Only 1Seg)

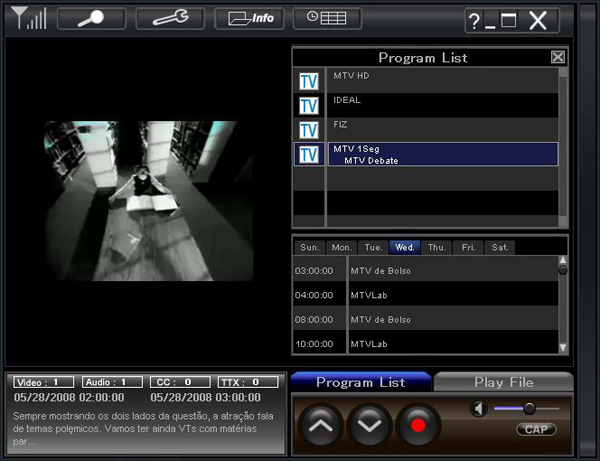

 ISDB-T 2035 Full seg Digital TV Receiver Application
