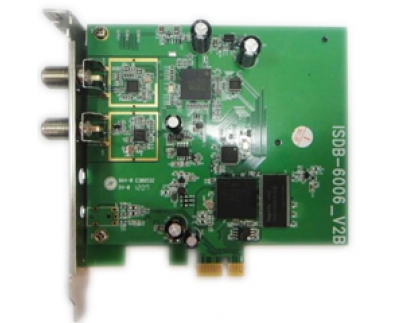

Full Seg/BS/CS PCI-e Card
ISDB-T 6006
ISDB-T 6006 is a digital terrestrial TV receiver. You can easily watch any digital TV programs on your PC with the revolutionary ISDB-T 6006. Bundled with powerful DTV player able to do Real-Time / Scheduling digital video recording, you will miss no important programs ever.
DESCRIPTION
H/W Spec

Satellite
* ISDB Satellite Standard: BS & CS 110°Channel Compliant
* Input Frequency Range: 950~2150MHz


Terrestrial

* ISDB Terrestrial Standard: 13 seg Channel Compliant
* Input Frequency Range: 44~885MHz
* Modulation mode: DQPSK, QPSK, 16QAM, 64QAM
* Guard Interval : 1/32, 1/16, 1/8, 1/4
* Mode : Mode1, Mode2, Mode3
* FEC Modes : 1/2, 2/3, 3/4, 5/6, 7/8


Common Functions
* Channel Bandwidth: 6MHz
* Antenna Input Impedance: 75 Ohm
* RF Connector: F Connector
* AV IN Connector: 1To 3(RCA)


Software
* PBDA Driver: Windows Vista / 7 (32Bit / 64Bit)
* Windows MCE Compatibility
* WHQL Ver1.6
