7" Android Panel PC
TM036

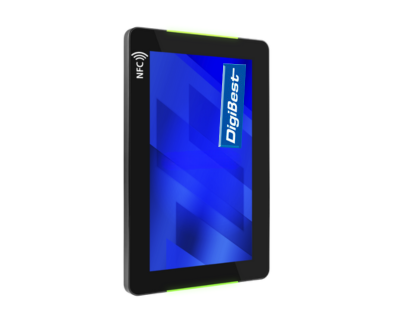

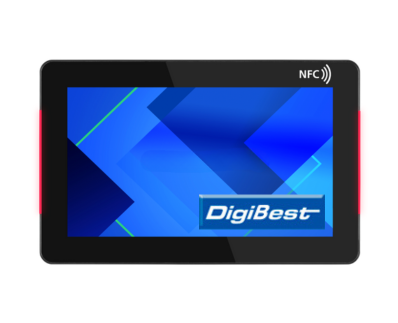

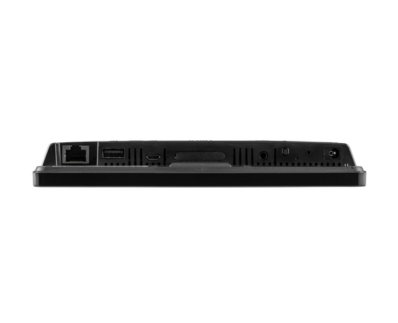

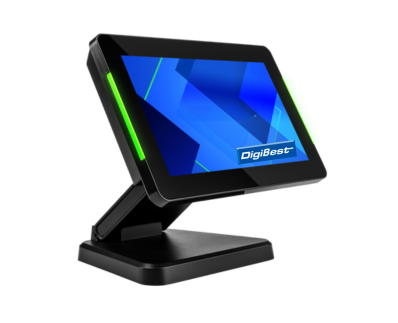

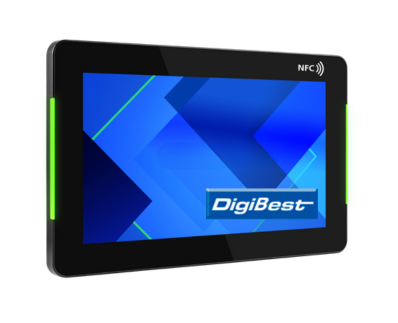

7-inch Android Panel PC running on Android 12. Powered by the quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568), this device ensures seamless operation and advanced graphical capabilities. With 4GB RAM and 16GB storage, multitasking becomes efficient, while IEEE 802.3at PoE+ support streamlines power and connectivity. Installation is a breeze with VESA mounting capability and a single PoE+ Ethernet cable, eliminating wiring complexities. Connectivity is crucial, offering various I/O ports for peripheral devices, making it ideal for retail, corporate, and industrial settings. The 7-inch touchscreen interface, driven by Android, ensures intuitive navigation, complemented by dual-sided RGB LED status lights. This Android Panel PC supports 10-point PCAP touch functionality and has received a non-glare treatment for enhanced visibility. Additionally, it includes an integrated NFC module for added functionalities.
 |
|
 |
DESCRIPTION
Panel
| Panel type |
TFT LCD |
| Resolution |
1024 x 600 |
| Backlight |
Edge-LED backlight |
| Brightness |
300 cd/m2 |
| Viewing angle |
H140 / V130 |
| Contrast ratio |
800 to 1 |
| Touch Type |
10 TP Pcap 10ms |
| Treatment |
Non-glare |
| Convenience |
Landscape,Portrait,Table Mode,Flushmount |
| Operation hours |
24h / 7d |
System
| GPU |
Mali-G52-2EE |
| Cooling |
Fanless |
| Video input |
N.A. |
| Video out |
N.A. |
| External storage |
MicroSD-Card Slot (door) |
| OS |
Android 12 |
| LED Light Bar |
2 sided LED bar (RGB)
|
| Network LAN RJ45 |
10/100/1000 Mbps LAN |
| WiFi |
802.11 a/b/g/n/ac |
| Bluetooth |
5 |
| Power over Ethernet (PoE) |
IEEE 802.3at (PoE+) |
| Integrated NFC |
Integrated NFC reader (NXP PN553) |
| Camera |
via PoGo & USB |
Video/Audio
| Video support |
H.264,MP4,MPG,MPEG2,MPEG4 |
| Audio support |
AAC,ASF,MP2,OGG,WAV,WMA,MP3 |
| Photo support |
JPG,JPEG,PNG,BMP,GIF |
| Microphone |
Yes |
| Speakers |
2 x 1 W |
Physical
| Housing |
ABS+PC (Macrolon) |
| Color |
Black |
| Weight |
360 g |
| Dimensions |
188,1 x 120,3 x 25,2 mm |
| Mounting / VESA |
VESA 75 |
| Power Supply |
12 V / 2 A (EU, UK, US) |
| Power Usage |
6 ~ 23 Watt |
| Pogo Pins |
1x (bottom) |
Other
| OSD Language |
Multi OSD language |
| Clock Battery (for RTC) |
CR1220 Lithium metal, non rechargeable |
| Storage Temp |
-10~55 degrees C |
| Working Temp |
0 ~ 40 degrees C |
| Storage/Working Humidity |
0 ~ 95 % non-condensing |
| MTBF |
35,000 hours demonstrated |
| Standard Warranty |
3 years |
| Certifications |
UKCA, CE, FCC, RoHS, REACH |
| SKU |
N.A. |
|
