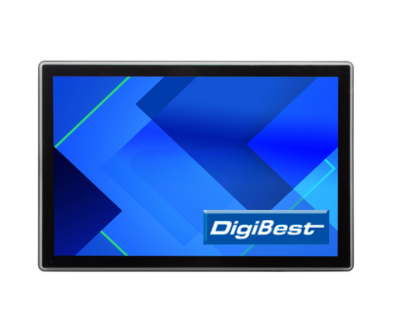

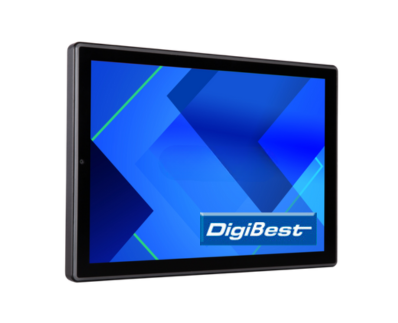

15.6" Android Panel PC
TM039
15.6-inch Android Panel Panel PC designed to improve any solution. With its powerful RK3399 CPU and Android 11 operating system, this device offers high performance and seamless user experience. Equipped with Power over Ethernet technology, it allows for simple and flexible installation, eliminating the need for additional power cables. The device also features Pogo pin ports, enabling easy and secure connectivity with a wide range of peripherals, such as cameras, barcode scanners or LED modules. This boasts an extensive array of I/O ports, providing unparalleled flexibility for any application. Whether it's for digital signage, interactive kiosks, or point-of-sale, this model can handle it all with ease.
DESCRIPTION
Panel
| Panel type |
TFT LCD IPS |
| Resolution |
1920 x 1080 |
| Backlight |
Edge-LED backlight |
| Brightness |
400 cd/m2 |
| Viewing angle |
H170 / V170 |
| Contrast ratio |
800 to 1 |
| Touch Type |
10 TP Pcap 10ms |
| Treatment |
Non-glare |
| Convenience |
Landscape,Portrait,Table Mode |
| Operation hours |
24h / 7d |
System
| GPU |
Mali T860 / 3D Graphic Engine 4K |
| CPU |
RK3399 (Dual Core Cortex A72 with Quad-core A53) |
| Video input |
N.A. |
| Video out |
Yes, mini-HDMI out |
| External storage |
SD-Card Slot (door) |
| Internal storage |
16 GB eMMC |
| System memory |
4GB LPDDR4 SDRAM
|
| Network LAN RJ45 |
10/100/1000 Mbps, RJ45 |
| WiFi |
802.11 a/b/g/n/ac |
| Bluetooth |
5 |
| Power over Ethernet (PoE) |
IEEE 802.3at (PoE+) |
| Integrated NFC |
via PoGo & USB |
| Camera |
via PoGo & USB |
Video/Audio
| Video support |
3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio support |
AAC,ASF,MP2,OGG,WAV,WMA |
| Photo support |
JPG,JPEG,PNG,BMP,GIF |
| Microphone |
Yes |
| Speakers |
2 x 3 W |
Physical
| Housing |
ABS+PC (Macrolon) |
| Color |
Black |
| Weight |
1300 g |
| Dimensions |
387,3 x 240,3 x 27,2 mm |
| Mounting / VESA |
VESA 100 |
| Power Supply |
12 V / 2 A |
| Power Usage |
10 ~ 23 Watt |
| Pogo Pins |
3x (bottom/left/right) |
Other
| OSD Language |
Multi OSD language |
| Clock Battery (for RTC) |
CR1220 Lithium metal, non rechargeable |
| Storage Temp |
-10~55 degrees C |
| Working Temp |
0 ~ 40 degrees C |
| Storage/Working Humidity |
10 ~ 90 % non-condensing |
| MTBF |
45,000 hours demonstrated |
| Standard Warranty |
3 years |
| Certifications |
UKCA, CE, FCC, RoHS, REACH |
| SKU |
N.A. |
|
