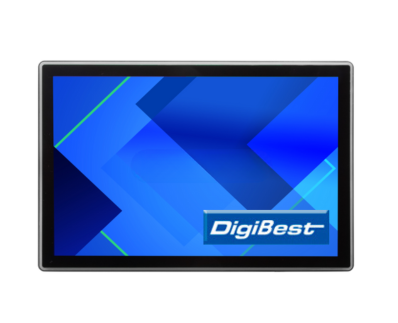

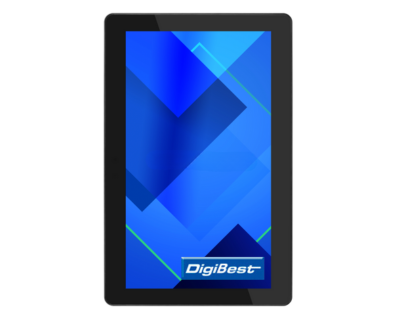

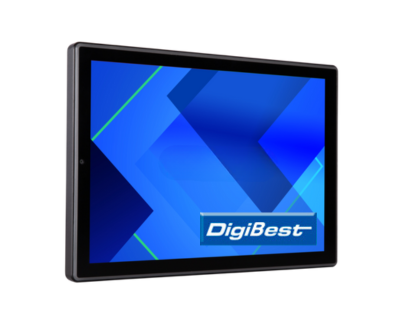

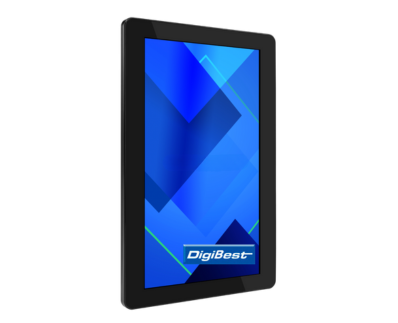

21.5" Intel Panel PC
TM041
21.5-inch Intel Panel PC designed for professional applications requiring strong performance, exceptional display quality, and flexible operation. With its sleek black metal housing and edge-to-edge TFT LCD IPS touchscreen, it offers a premium combination of durability, style, and functionality, making it an ideal solution for retail, industrial, and business environments.
DESCRIPTION
Panel
| Panel type |
TFT LCD IPS |
| Resolution |
1920 x 1080 |
| Backlight |
Edge-LED backlight |
| Brightness |
250 cd/m2 |
| Viewing angle |
H178 / V178 |
| Contrast ratio |
3000 to 1 |
| Touch Type |
10 TP Pcap 20ms |
| Treatment |
Glare |
| Convenience |
Landscape,Portrait,Table Mode |
| Operation hours |
24h / 7d |
System
| GPU |
Intel UHD Graphics 630 |
| CPU |
Intel Core i5-8500T |
| Video input |
N.A. |
| Video out |
Yes, HDMI out |
| External storage |
via USB |
| Internal storage |
128GB SATA SSD 2,5" |
| LED Light Bar |
via PoGo
|
| Network LAN RJ45 |
10/100/1000 Mbps LAN |
| WiFi |
optional via USB dongle |
| Bluetooth |
BT 4.2 |
| Additional Windows license required |
Yes, at a cost |
| Integrated NFC |
via PoGo & USB |
| Camera |
via PoGo & USB |
Video/Audio
| Video support |
MKV,MP4 |
| Audio support |
MP3,WMA |
| Photo support |
JPEG,PNG |
| Microphone |
via USB & 3.5mm jack |
| Speakers |
2 x 3 W |
Physical
| Housing |
Metal |
| Color |
Black |
| Weight |
7225 g |
| Dimensions |
535,5 x 328,6 x 62,5 mm |
| Mounting / VESA |
VESA 100 |
| Power Supply |
12 V / 8.33 A |
| Power Usage |
40 ~ 70 Watt |
| Pogo Pins |
2x (bottom/left) |
Other
| OSD Language |
Multi OSD language |
| Clock Battery (for RTC) |
CR2032 Lithium metal, non rechargeable |
| Storage Temp |
-10~55 degrees C |
| Working Temp |
0 ~ 40 degrees C |
| Storage/Working Humidity |
10 ~ 90 % non-condensing |
| MTBF |
50,000 hours demonstrated |
| Standard Warranty |
3 years |
| Certifications |
FCC, RoHS, CE |
| SKU |
N.A. |
|
