USB Digital TV Receiver
ISDB-T 2048
ISDB-T 2048 is a USB digital TV (Terrestrial/Satellite BS & CS 110°) receiver. You can easily watch any digital TV programs on your PC with the revolutionary ISDB-T 2048. Bundled with powerful DTV player able to do Real-Time / Scheduling digital video recording, you will miss no important programs ever.




* Receive digital TV, and record it on your hard disk to enjoy later.
* Schedule future recordings.
* Use the EPG (Electronic Program Guide) function to get the current TV program
  guide. Double-click a show title to add the program to your recording schedule.
* Choose from among multiple soundtracks as long as they are available.
* Support subtitle & MTS
Product Spec:
Tuner Satellite  BS & CS 110°Channel Compliant
 Frequency Range 950~2150MHz
Terrestrial  13 seg Channel Compliant
 Frequency Range 44~885MHz

 Modulation mode: DQPSK, QPSK, 16QAM, 64QAM

 Guard Interval : 1/32, 1/16, 1/8,1/4

 Mode: Mode1, Mode2, Mode3

 Fec Modes: 1/2, 2/3, 3/4, 5/6, 7//8

Channel Bandwidth 6MHz

 Video Format: H.264(MPEG-4 pat10) main, high profile level 4.1 /MPEG MP@HL

 Video Frame Rate: 30fps

 Video Bit Rate: 32 Mbps, Max

Audio  Audio Format: MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC MPEG-  4 AAC+ SBR, Dolby AC3
RF Type  F type
USB Interface

 Universal Serial Bus 2.0 Standard

 Mini USB Type Male conector

Software System   Windows 7 & Vista (32 & 64 bit)/ Windows XP
CA System   B-CAS (Multi2)
Satellite LNB Power  NO
Power Consumption  < 2W (5v x 400mA)
Dimensions (W x D x H)   80mm (W) X 87mm (D) x 14mm (H)
Weight   60g
 System Requirements:
対応CPU ノートパソコン Intel

Core i3 330M(2.13GHz)以上

Core 2 Duo P8400(2.26GHz)以上

AMD Athlon Neo X2 L335(1.6GHz)以上
デスクトップパソコン Intel

Pentium Dual-Core E2180(2.0GHz)以上

Core 2 Duo E4400(2.0GHz)以上

Core i3 530(2.93GHz)以上

AMD Athlon II X2 235e(2.7GHZ)以上
メモリー Windows 7 & Vista 2GB以上
Windows XP 1GB以上
ハードディスク 800MB以上の空き容量(NTFSファイルシステムでご使用ください) ※別途録画データ保存用の空き容量が必要です。
対応グラフィック ノートパソコン

Intel G33以上

AMD 780G以上








●アナログRGB から出力する場合52万画素以下の解像度で出力されます。


XGA(1024×768)以上[推奨 WUXGA(1920×1200)以上]




Direct X9.0c以上に対応した環境

※デジタル音声出力はWindows 7/Windows Vistaのみサポート。

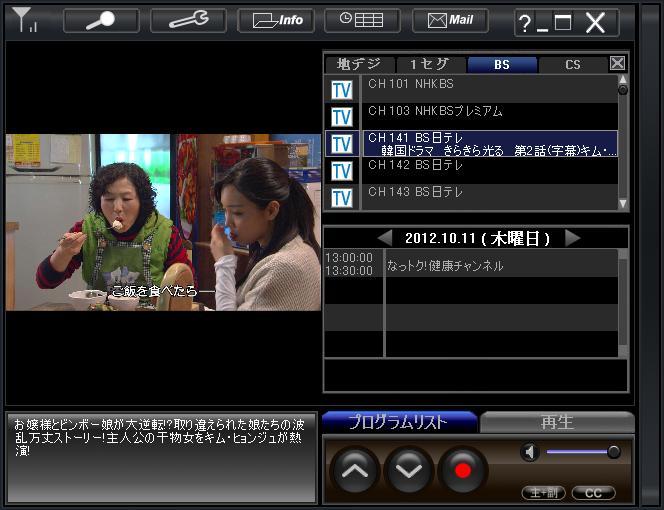

ISDB-T 2048 USB Digital TV Receiver Application
