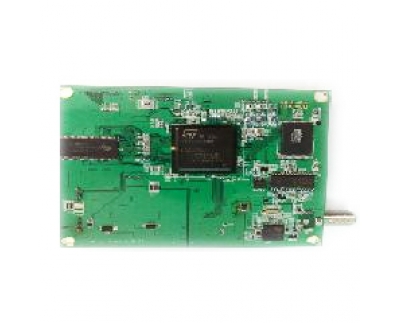

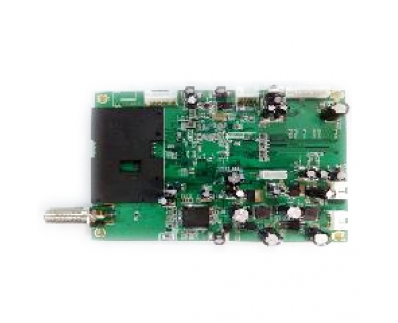

Full Seg Module
ISDB-T TM002
(1) Video Format: ISDB-T, Full Segment MPEG 1/2 (HD/SD)
(2) Video Frame Rate: 30 fps by broadcaster
(3) Video Bite Rate: 32 Mbps, Max
(4) Audio Format: MPEG 2 HE-AAC (ISO/IEC 13818-7)
DESCRIPTION
H/W Spec
(01) ISDB-T Broadcasting Standard: Full seg Channel Compliant
(02) Support ISDB-T Full Seg programs: VHF CH1 ~ CH12
    UHF CH13 ~ CH62
    CATV CH13 ~ CH63 (Pass through)
(03) Modulation mode: DQPSK, QPSK, 16QAM, 64QAM
(04) Guard Interval : 1/32, 1/16, 1/8, 1/4
(05) Mode : Mode1, Mode2, Mode3
(06) FEC Modes : 1/2, 2/3, 3/4, 5/6, 7/8
(07) RF Input: F connector
(08) TV Video Output: HDMI、YPbPr
(09) Power Consumption: 12V/6W
(10) Channel Bandwidth: 5.6MHz
(11) Antenna Input Impedance: 75 Ohm
(12) Sensitivity: -76dBm (Typical)
(13) Maximum Input Level: +4dBm
(14) DDR Memory Size: 256MBit
(15) Flash Size: 128MBit
(16) Support B-CAS Interface
(17) Support Japan CA-System(Multi 2)


S/W Spec
(01) Video Format: ISDB-T, Full Segment MPEG 1/2 (HD/SD)
(02) Video Frame Rate: 30 fps by broadcaster
(03) Video Bite Rate: 32 Mbps, Max
(04) Audio Format: MPEG 2 HE-AAC (ISO/IEC 13818-7)

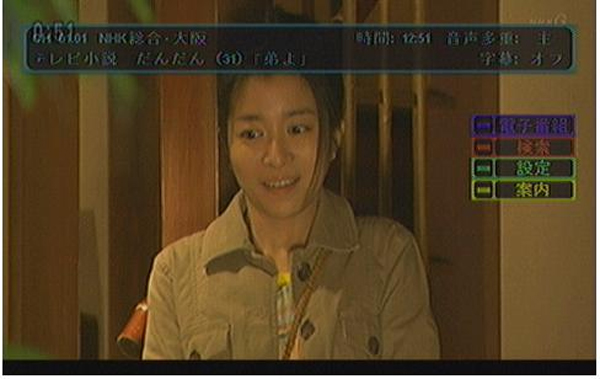

ISDB-T TM002 Full Seg Module Application

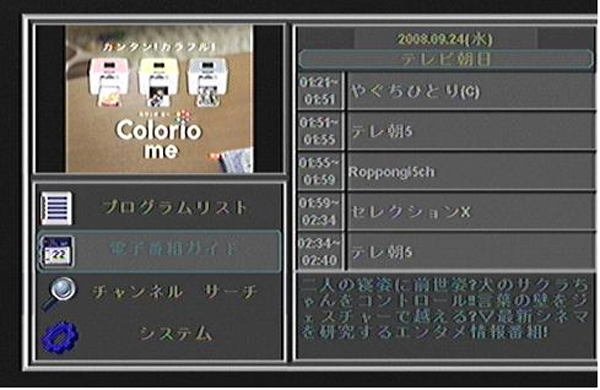

ISDB-T TM002 Full Seg Module Application
