Digital Terrestrial Receiver
ODM
High Definition MPEG2/MPEG-4 DVB-T2
DESCRIPTION
FEATURES
01. Digital terrestrial and SD&HD MPEG-2, MPEG-4/H.264 Compatible
02. High definition decoding
03. 800 pages Teletext
04. High Reception sensitivity & Resolution
05. Max 500 Favorite Channels Program
06. Channel Backup after Power off
07. Support channel list & favorite list
08. Electronic Program Guideline
09. Sleep function & Indicator
10. Parental lock
11. Manual /Auto scan modes
12. USB2.0
13. LCN function
14. User friendly OSD Multilanguage menu
15. Software upgradeable via USB connector
 DVB-T2_1000_Digital_Terrestrial_Receiver
 DVB-T2_1000_Digital_Terrestrial_Receiver

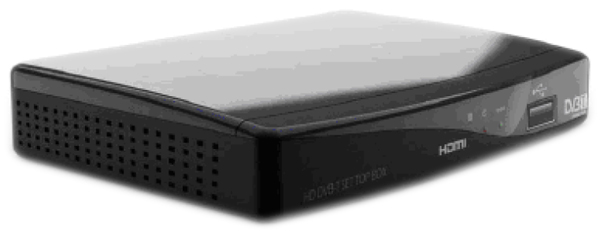

Product Picture

SPECIFICATION
TUNER
Input Frequency Range: 174-230MHz (VHF), 470-862MHz (UHF)
RF-loop through range: 45MHz – 862MHz
IF Bandwidth: 7, 8MHz
Input Signal Level: -75~-20dBm
RF Input Connector: IEC Type (female)
RF Output Connector: IEC Type (male)
Input impedance: 75Ω

DE-MODULE MODE
Modulation mode: COFDM(Code Orthogonal Frequency Division Multiplexing)
Demodulation: QPSK, QAM16, QAM64
Mode: 2K, 8K
Guard interval: 1/4, 1/8, 1/16, 1/32
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

VIDEO, AUDIO
Video decode: ISO/IEC 13818-2 (SD&HD MPEG-2 video) MP@HL
  ISO/IEC 14496-10 (SD&HD MPEG-4 AVC/H.264 video) HP@L4
Video resolution: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Video format: 4:3, 16:9, auto
Teletext: support DVB-TXTETSI/EN300472
Audio decode: ISO/IEC 13818-3 (MPEG-2 audio / MUSICAM), digital pass-through.

PROCESSOR
CPU: Ali M3801

FRONT PANEL
1 * USB
3 * buttons ( standby, CH+, CH- )

REAR PANEL
1 * RF in / loop
1 * HDMI
1 * CVBS
R & L audio

POWER SPECIFICATION
Input Voltage : AC176-264V, 50Hz
Power Consumption : 8W.
Standby Power: 1W max.

DIMENSION
Unit Dimension : 130 (W) ×100 (D) ×30(H) mm
Loading: 14784pcs/20ft, 29568pcs/40ft
